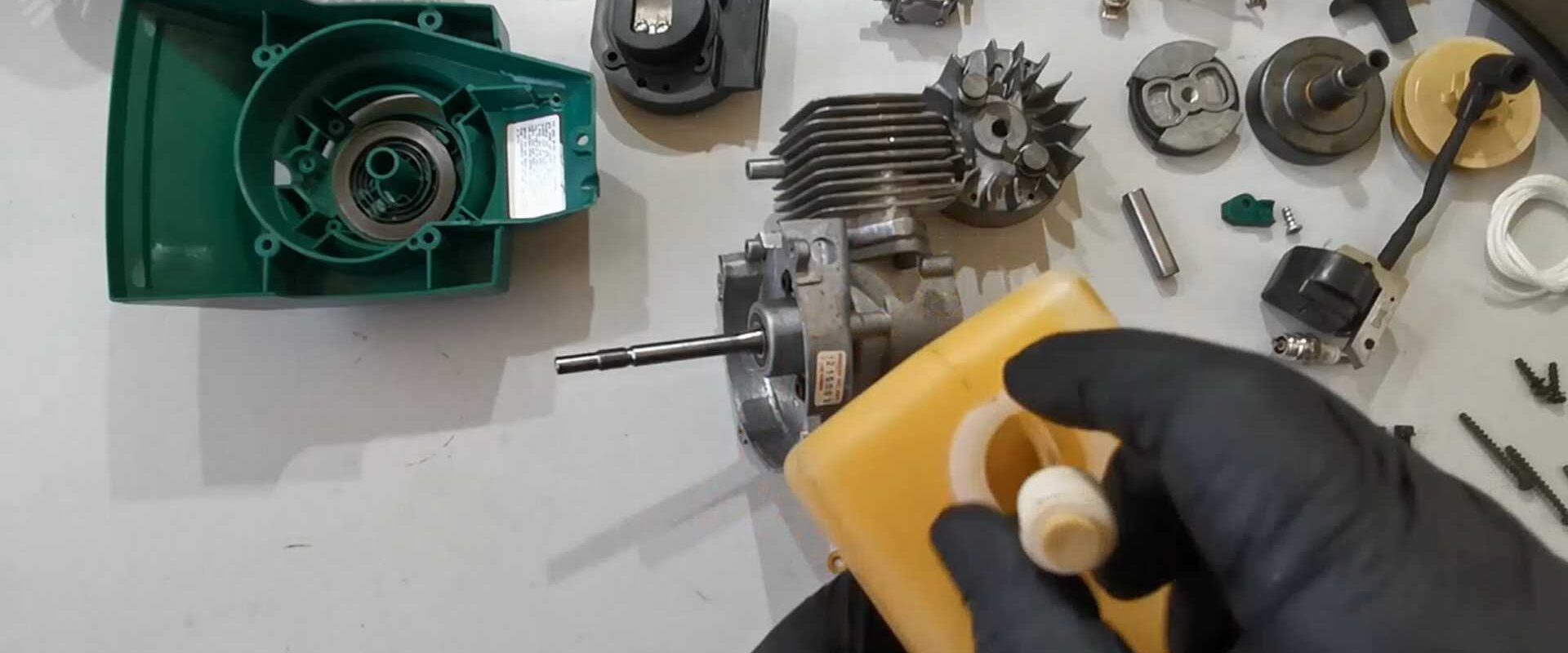

Installing the fuel line kit on a Ryobi Lawn Hornet is a straightforward process. Follow these step-by-step instructions:
- Clean the Engine and Fuel Tank
Begin by thoroughly cleaning the engine and the fuel tank to prevent dirt or debris from entering the fuel system. - Insert the Fuel Line with Filter
Open the fuel cap and insert the 20 cm fuel line (with the fuel filter attached) through the outermost side hole inside the fuel tank. - Pull the Line Through
From the bottom of the tank, carefully pull the line all the way through. Use a gentle circular motion to help guide the fuel filter nozzle out. - Secure the Fuel Filter Nozzle
Lock the fuel filter inlet nozzle in place using the provided plastic ring. - Connect to Carburetor Intake
Attach the 20 cm fuel line to the carburetor intake nozzle (the bent nozzle). - Connect Fuel Lines to the Fuel Pump
– Connect the 15 cm fuel line to the shorter nozzle on the fuel pump.
– Connect the 11 cm fuel line to the longer nozzle on the fuel pump. - Install the Primer Pump Assembly
Mount the primer bulb (pump assembly) securely in its designated place. - Connect Return Line to Carburetor
Attach the 15 cm fuel line to the carburetor return nozzle (the straight nozzle). - Return Line to Fuel Tank
Finally, connect the 11 cm fuel line to the fuel tank return hole.
